Inventory

Virtual Network Edge Dashboard displays all Virtual Edges as an inventory for your Organisation.

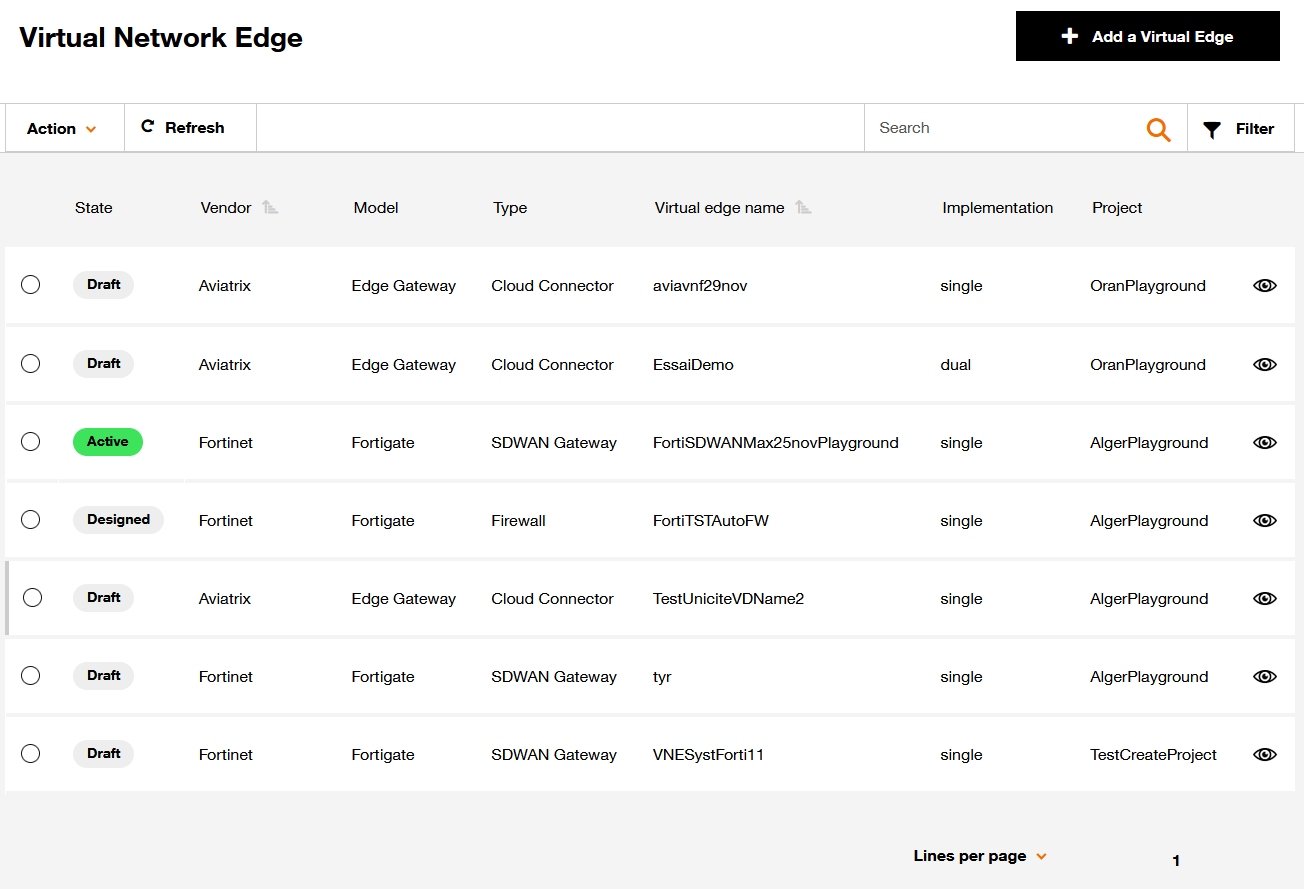

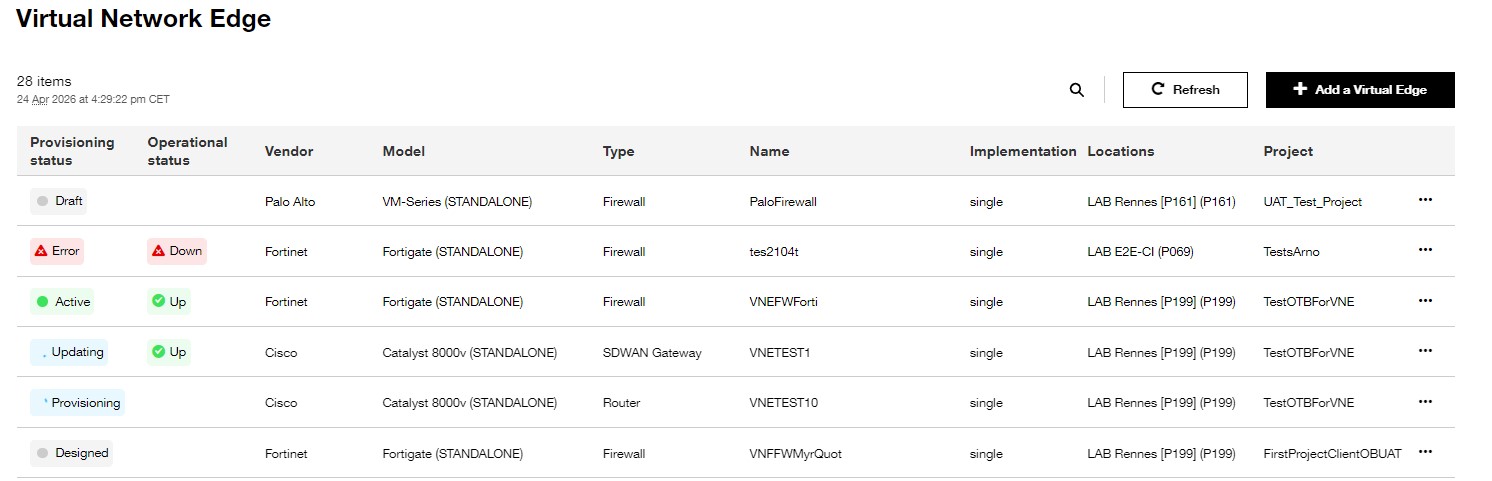

Overview of the inventory page.

This page offers:

“Add a Virtual Edge” button to create Virtual Edge which will be displayed in the inventory.
Filter and search bar useful to find a specific Virtual Edge.
Column sorting.

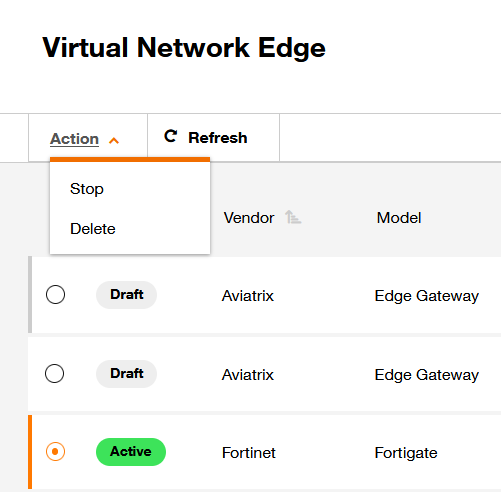

Available actions on a Virtual Edge

Select a Virtual Edge and click on action to make an action on it. These actions are defined by the state of the Virtual Edge.

Stop: Stop the Virtual Edge and keep all resources configured on the Orange Super POP
Delete: Delete all resources of Virtual Edge on Orange Super POP
Unprovision: Delete all resources of Virtual Edge on Orange Super POP but keep resources of Virtual Edge in the Evolution Platform console. It is possible on redeploy these resources.
Provision: Create all resources of Virtual Edge on the Orange Super POP.
Update: Allow you to modify characteristic values of Virtual Edge by coming back to the customer Journey.

Possible actions are based on Virtual Edge state:

Possible actions for active state.

The Virtual Edge states are described below:

Description of states of Virtual Edges
State of Virtual Edge	Description
Draft	The Virtual Edge is saved with some information but all mandatory fields are not filled in. The Virtual Edge cannot be deployed with this status .
Designed	The Virtual Edge is saved with all mandatory fields filled in. Virtual Edge can only be deployed with this status
Active	The Virtual Edge is deployed on Orange Super POP with no error. All resources are created on Orange Super POP
Error	The Virtual Edge is deployed on Orange Super POP with one or several error
Terminated	All resources of Virtual Edge are deleted on Orange Super POP
Inactive	Suspending a Virtual Edge makes it inactive. All resources of Virtual Edge are still configured on the orange Super POP

Click on the eye () icon at the end of the row to open de detail Popup.

Overview of the “see details” button.
